Theodolite may be defined as the optical survey instrument that is used to measure the angles between the specified points both in the vertical and horizontal plane.



  1. Theodolite Traversing Numericals – Useful Formula



a. Consecutive Co-ordinates

The latitude and departure of any station concerning the preceding station are known as consecutive coordinates. It is also known as Dependent Co-ordinates.

Consecutive coordinates,

a. Latitude = LcosΘ

b. Departure = LsinΘ



b. Independent Co-ordinates

The total latitude and departure of any point concerning common origin are known as independent coordinates.

 c. Closing Error

In a closed traverse plot, the distance shifted off the first station due to an error in-field measurement of angles and distances is called Closing Error.

In a close traverse, if there is no error, then, ƩL = 0 and ƩD = 0.

Magnitude of Closing error = √ [(ƩL)2 + (ƩD)2]

The direction of Closing error = ƩD / ƩL

Relative Precision = Error of closure / Perimeter = e / p or 1: p/e










  2. Balancing the Linear and Angular Misclosure in Traverse Methods

a. Bowditch’s Method (Compass Rule)

Assumptions:

i. Error in linear measurements is directly proportional to the square root of the length.

ii. Error in angular measurement is inversely proportional to the square root of the length.

It is employed where linear and angular measurements are closer in precision. And the total error is distributed in proportion to the length of the sides.

CL = ƩL * (l/Ʃl)

CD = ƩD * (l/Ʃl)

Where,

CL = Correction to the latitude of any side

CD = Correction to the departure of any side

ƩL = Total error in latitude

ƩD= Total error in Departure

l = Length of any side

Ʃl = Perimeter of traverse = algebraic sum of lengths.

b. Transit Method

i. Employed where angular measurement is significantly more precise than linear measurement.

ii. Total error is distributed in proportion to latitudes and departures of the sides.

CL = ƩL * L/ƩLt and CD = ƩD * D/ƩDt

Where,

CL = Correction to the latitude of any side

CD = Correction to the departure of any side

ƩL = Total error in latitude (Sign Consideration)

ƩD= Total error in Departure (Sign Consideration)

L, D = Latitude, and Departure of any side

∑Dt = Arithmetic sum of Departures (No sign Consideration)

∑Lt = Arithmetic sum of Latitudes (No sign Consideration)










  3. Gales Table

Traverse computations are usually done in a tabular form, a more common form is Gales Traverse Table.

For complete traverse computations, the following steps are usually necessary.

i. Adjust the interior angles to satisfy the geometrical condition, i.e., the sum of interior angles to be equal to (2n-4)*90º and exterior angles (2n+4)*90º.

ii. Starting with the observed bearing of one line, calculate the whole circle bearings of all other lines.

iii. Calculate the consecutive coordinates (i.e., latitudes and departures).

iv. Calculate ƩL and ƩD.

v. Apply necessary corrections to the latitudes and departures of the line so that ƩL = 0 and ƩD = 0. The correction may be applied to either the transit rule or compass rule depending upon the type of traverse.

vi. Using corrected consecutive coordinates, calculate the independent coordinates to the points so that they are all positive, the whole of the traverse thus lying in the North East quadrant.










  4. Theodolite Traversing Numericals

1.1. An abstract from a traverse sheet for a closed traverse is given below. Balance the traverse by the Bowditch method and transit method.

LineLengthWCB
AB89.3145°10′
BC219.7672°05′
CD151.18161°52′
DE159.10228°43′
EA232.26300°42′



Solution,



By the Bowditch method,

For consecutive coordination,

Latitude = LcosΘ

Departure = LsinΘ

Perimeter = ∑l = Sum of lengths = 851.61

(Θ= WCB)



For correction,

Magnitude of closing error= √((0.51)²+(0.224)²)=0.557m

Direction of closing error= tan-1(0.224/0.51)=23º42’42.6″

CL =∑L×(l/∑l)

CL of line AB= 0.51×(89.31/851.61)=0.053

CL of line BC= 0.51×(219.76/851.61)=0.132

CL of line CD= 0.091

CL of line DE=0.095

CL of line EA= 0.061

similarly,

CD = ƩD * (l/Ʃl)

CD of line AB=0.224×(89.31/851.61)=0.023

CD of line BC=0.224×(219.76/851.61)=0.058

CD of line CD=0.224×(151.18/851.61)=0.040

CD of line DE=0.224×(159.10/851.61)=0.042

CD of line EA=0.224×(232.26/851.61)=0.061

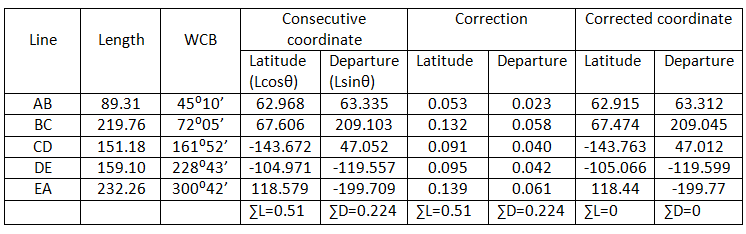

For corrected coordinates,

Corrected Latitude= latitude – CL (since (∑L) is positive, the correction will be negative)

Corrected departure= Departure – CD



By Transit method,

For consecutive coordination,

Latitude = LcosΘ and Departure = LsinΘ

(Θ= WCB)

For correction,

CL = ƩL * L/ƩLt

CD = ƩD * D/ƩDt

Where, CL = Correction to the latitude of any side

CD = Correction to the departure of any side

ƩL = Total error in latitude (Sign Consideration)

ƩD= Total error in Departure (Sign Consideration)

L, D = Latitude, and Departure of any side

∑Dt = Arithmetic sum of Departures (No sign Consideration)

∑Lt = Arithmetic sum of Latitudes (No sign Consideration)



Then,

CL of line AB= 0.51×(62.968/497.796)= 0.065

CL of line BC= 0.51×(67.606/497.796)= 0.069

CL of line CD= 0.51×(143.672/497.796)= 0.147

CL of line DE= 0.51×(104.971/497.796)= 0.108

CL of line EA= 0.51×(118.579/497.796)= 0.121



Similarly,

CD of line AB =0.224×(63.335/638.756)= 0.022

CD of line BC =0.224×(209.103/638.756)= 0.073

CD of line CD =0.224×(47.052/638.756)= 0.017

CD of line DE =0.224×(119.557/638.756)= 0.042

CD of line EA = 0.224×(199.709/638.756)= 0.070



For corrected coordinates,

Corrected Latitude= latitude – CL (since (∑L) is positive, the correction will be negative)

Corrected departure= Departure – CD










1.2. Calculate the length and bearing of the same traverse leg is omitted.

LineLength Bearing
AB89.3145º10′
BC??
CD151.18161º52′
DE159.1228º43′
EA232.26300º42′



Solution,

For closed traverse,

∑L=0 (Sum of latitude is zero)

62.968+x cosy-143.672-104.971+118.579=0

x cosy=67.096 ……(i)

∑D=0 (Sum of departure is zero)

63.335+xsiny+47.052-119.557-199.709=0

xsiny=208.879 …..(ii)

Dividing equation (ii) by (i)

tany=(208.879/67.096)

∴y=72º11’31.1″

Putting the value of y on any equation,

∴x= 219.391

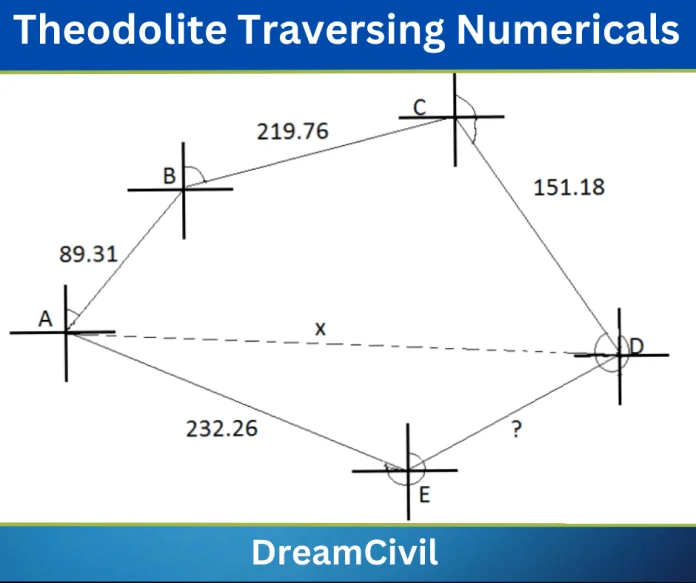

1.3. Calculate the missing data.

LineLength Bearing
AB89.3145º10′
BC219.7672º05′
CD151.18161º52′
DE?228º43′
EA232.26?





Solution,



In a closed traverse ABCDA

LineLengthBearingLatitudeDeparture
AB89.3145º10′62.96863.335
BC219.7672º05′67.606209.103
CD151.18161º52′-143.67247.052
DAxyx cosyx siny



For closed traverse,

∑L=0 (Sum of latitude is zero)

62.968+67.606+xcosy-143.672=0

xcosy=13.098 ……(i)

∑D=0 (Sum of departure is zero)

63.335+209.103+xsiny+47.052=0

xsiny=-319.49 …..(ii)

From eqn (i) and (ii)

tany=-24.392

∴y= -87º39’8.58″

Also, y=360º-87º39’8.58’=272º20’57.42″

∴x= 319.758

Again,

using sine law, In traingle AED

{(Sin∠D) / 232.26} = {(Sin∠A) / ED} = {(Sin∠E) / 319.758}

Then,

(∠D =272º20’51.42″ – 228º43′  = 43º37’51.42″)

((Sin43º37’51.42″)  / 232.26 )= ( (Sin∠E) / 319.758)

Sin∠E=0.958

∠E=71º47’48.37″

Again,

Using cosine law,

CosD=((AD²+ED²-AE²)/2(AD)(ED))

or, Cos43º37’51.42″=(319.758²+ED²-232.26²)/2×319.758×ED

ED=158.982

Again,

((Sin∠D)/232.26)=((Sin∠A)/ED)

Sin∠A=0.472

∠A=28º11’4.21″

Then,

Bearing of DE=228º43′

Bearing of ED=228º43′-180º=48º43′

Bearing of EA=360º-71º47’48.37″+48º43’= 336º55’11.63″
