  1. Introduction

Screening of water is the first process in water treatment that is done to remove suspended or floating solid particles like branches, leaves, sticks, etc from the water.

When water derived from the surface contain large suspended as well as floating matters which may be sticks, branches, leaves, etc; the screens are fixed in the intake works or at the entrance of the treatment plant to remove the suspended as well as floating matters.

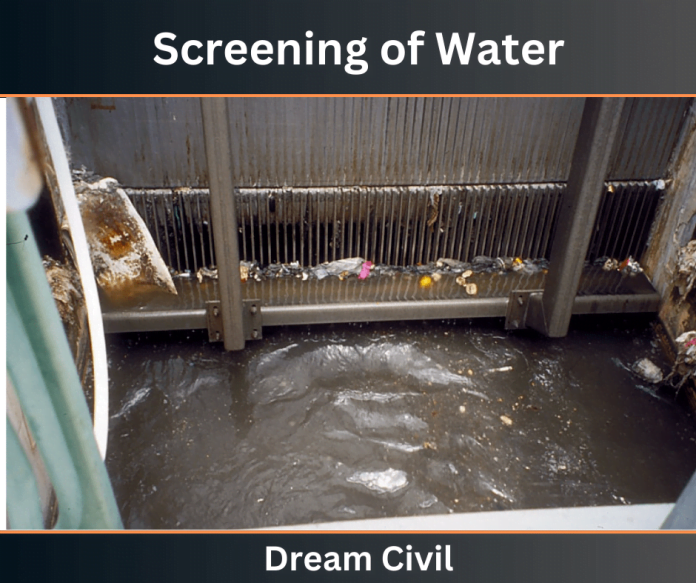

Screening of Water

Fig: Screening of Water

Screening can be done manually using screens or by the use of screening machines.

Chain-driven screen, continuous belt screen, catenary screen, and reciprocating rake are the commonly used screening machines.


Read Also:  Irrigation with its all types


  2. Purpose of Screening of Water

1. To remove large suspended as well as floating matter such as leaves, branches, dead animals, etc.

2. To work as a protective device for a successive treatment. ( Like it prevents the clogging of pumps and damage of other equipment.)

3. To increase the efficiency of the successive.


  3. Types of Screens Used in Screening of Water

Commonly, two types of screens are used for screening which is listed below:


a. Bar Screen

Bar screen is also called coarse screen.

They have a wider opening and are placed in front of the fine screen to remove large, floating, and suspended materials.

The coarse screen has openings ranging from 6 to 150 mm (0.25 t0 6 in).


b. Fine Screen

The fine screen is used to remove smaller, floating, and suspending matter of size smaller than removed by the coarse screen.

The fine screen has openings of less than 6mm.


c. Micro Screen

It is the smallest type of screen whose opening ranges from 10 to 35µm.

These screens are typically low-speed drum screens.
