1. Introduction

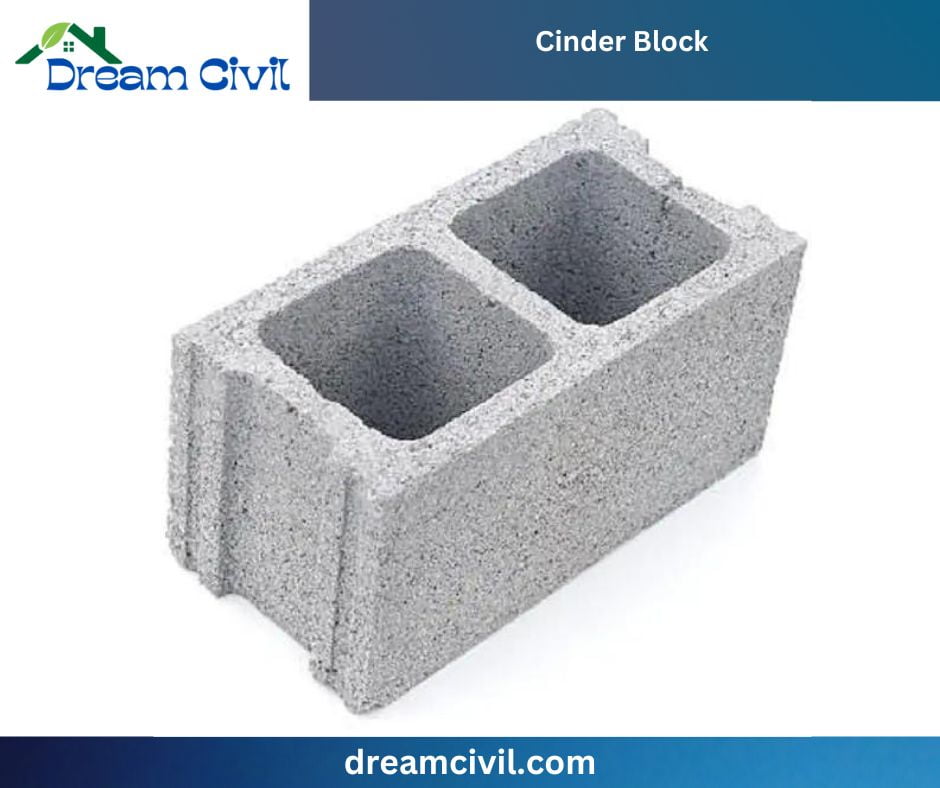

Cinder Block

Cinder blocks are rectangular hollow structures made of Concrete, using coal cinders (fly ash/bottom ash) instead of aggregates to build walls at construction sites.

Commonly, fly ash is utilized as aggregate in the cinder block.






2. How cinder blocks and concrete blocks are different?

AspectCinder BlocksConcrete Blocks
CompositionCoal cinders, Clay or shale, cement, sand, waterWater, sand, gravel, cement
WeightLighter (25-35 lbs)Heavier (42-55 lbs)
StrengthLower strength (up to 1,500 psi)Higher strength (up to 5,000 psi)
DurabilityLess durable, prone to crackingMore durable, resistant to weathering
Thermal InsulationBetter insulationLess efficient insulation
AppearanceRough texture, greySmoother surface, various colors
Specific UseNon-load-bearingLoad-bearing
AestheticsLimited optionsMore options for decorative designs
CostCheapExpensive

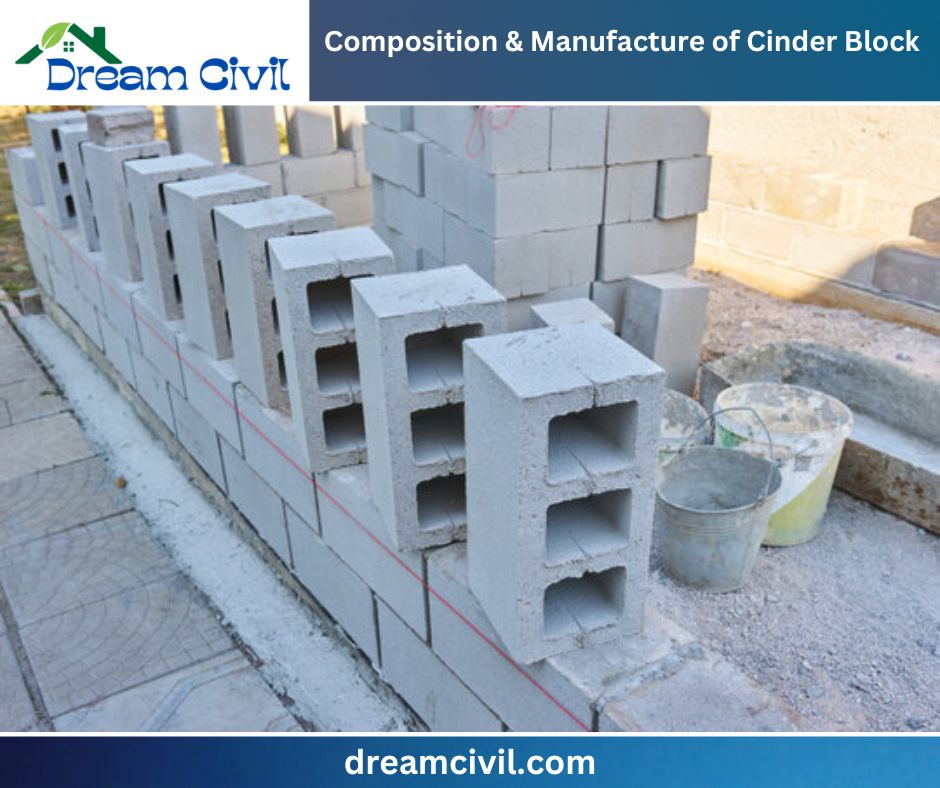

3. Composition and manufacturing process of Cinder Block

Cinder Block



Composition of materials in percentage:

Material ComponentApproximate Percentage Composition
Coal Cinders70% – 85%
Clay or Shale5% – 15%
Sand5% – 15%
Portland Cement5% – 10%
WaterVaries (used for mixing)



Manufacturing Process Table:

StepDescription
MixingCoal cinders, Clay or shale, cement, sand, and water are mixed precisely to form the concrete batch.
MoldingThe mixture is poured into molds shaped like cinder blocks.
VibrationMolds are subjected to vibration to remove air bubbles and ensure uniform distribution of materials.
CuringBlocks are cured in a controlled environment, allowing the cement to hydrate fully.
Quality ControlEach block is inspected for quality, including dimensions, strength, and surface finish. Blocks that do not meet the required standards are rejected.
Packaging and StorageCured and approved blocks are packaged and prepared for distribution to construction sites.




4. Properties of Cinder Blocks

Cinder Block

  1. Composition: Cinder blocks are made up of coal cinders (70% – 85%), clay or shale (5% – 15%), sand (5% – 15%), Portland cement (5% – 10%), and water.
  2. Weight: Cinder blocks typically weigh 25 to 35 pounds, making them lighter than concrete blocks.
  3. Strength: Cinder blocks typically have a lower compressive strength than concrete blocks, with a maximum of 1,500 psi.
  4. Durability: Non-load-bearing applications may be more suitable for these less durable materials, which may be more prone to cracking.
  5. Thermal Insulation: Cinder blocks can offer better thermal insulation than concrete blocks due to their low density.
  6. Appearance: Cinder blocks typically have a rough texture and are often found in varying shades of gray.ng shades of gray.
  7. Specific Use: Cinder blocks are commonly used for non-load-bearing walls, partitions, and decorative purposes.
  8. Aesthetics: With their limited aesthetic options, cinder blocks can still be effectively used in various decorative designs by adding finishes.






5. Common Applications of cinder block

UseDescription
Retaining WallsUsed to hold back soil and prevent erosion on sloping terrain.
Garden WallsCreates defined and organized spaces in gardens, separating different areas.
Privacy FencingPart of sturdy and durable privacy fences when combined with other materials.
Raised Garden BedsIt is famous for constructing raised beds and providing structured gardening spaces.
Decorative FeaturesUsed to create decorative elements like planters, benches, and outdoor seating areas.
Sound BarriersIncluded in sound barrier walls to reduce noise pollution along highways or industrial areas.
Temporary BarriersServes as temporary barriers, roadblocks, or crowd control measures when needed.
Erosion ControlUsed for building check dams in streams or rivers to slow water flow and reduce soil erosion.
DIY ProjectsCommonly used in DIY projects, including outdoor furniture and bookshelves.






6. Cinder Block Sizes with weight

Size (inches)Weight (pounds)Weight (kilograms)
4″ x 8″ x 16″ (solid)3315
4″ x 8″ x 16″ (hollow)2612
6″ x 8″ x 16″ (solid)5123
6″ x 8″ x 16″ (hollow)3214
8″ x 8″ x 16″ (solid)5123
8″ x 8″ x 16″ (hollow)3817



Please note that the weight of cinder blocks may slightly vary depending on their specific composition and manufacturer.






7. How to Work with Cinder Blocks?

Before working with cinder blocks, you must consider the following information.

Material/ToolPurpose
Cinder blocksBuilding blocks for your project.
Mortar mixUsed to bond cinder blocks together.
WaterMixed with mortar to create the bonding paste.
TrowelFor applying mortar and shaping joints.
LevelEnsures blocks are level and plumb.
Measuring tapeUsed for accurate measurements and layout.
HammerFor cutting or shaping blocks if needed.
Nails (for attaching blocks)Secure blocks to other surfaces, if required.
Safety gear (gloves, safety glasses, and a dust mask)Protects against potential hazards.



Step-by-Step Guide:

StepDescription
Plan Your Project:Determine dimensions and layout.

Calculate blocks and mortar needed.

Prepare the Site:Clear debris and obstacles.

Use stakes and string lines for guidance.

Mix Mortar:Follow the manufacturer’s instructions to create mortar paste.
Lay the First Course:Start at a corner and apply mortar on the ground.

Position and level the first block.

Add mortar between adjacent blocks.

Continue Building:Place subsequent blocks next to or atop the first.

Ensure levelness and plumpness.

Apply mortar to bond blocks.

Cut Blocks (if needed):Use a hammer, chisel, or saw to fit blocks in spaces.
Secure Corner Blocks:Utilize corner blocks or miter-cut regular blocks for square and level corners.
Finish Your Project:Build courses to the desired height.

Allow the mortar to dry and cure per the manufacturer’s instructions.

Clean Up:Remove excess mortar with a wire brush or trowel.

Properly dispose of waste materials.

Optional Finishes:Customize appearance with paint or veneer/stucco.






8. Cinder Block Cost

The cost of cinder blocks may fluctuate depending on several factors, such as their size, type, density, and point of sale. However, a general approximation would be in the range of $1 to $5 per block.

The following table shows the approximate cost of common cinder block sizes in the United States:

Size (inches)Cost (per block)
4″ x 8″ x 16″ (solid)$1.50-$3.00
4″ x 8″ x 16″ (hollow)$1.00-$2.50
6″ x 8″ x 16″ (solid)$2.00-$4.00
6″ x 8″ x 16″ (hollow)$1.50-$3.50
8″ x 8″ x 16″ (solid)$2.50-$5.00
8″ x 8″ x 16″ (hollow)$2.00-$4.50

9. Advantages of Cinder Block

Some advantages of cinder block are:

Affordability: Cost-effective construction material.

Durability: Strong and long-lasting.

Fire Resistance: Excellent fireproof properties.

Low Maintenance: Requires minimal upkeep.

Sound Insulation: Provides some noise reduction.

Versatility: Various sizes and shapes are available.

Energy Efficiency: Helps regulate indoor temperatures.

Ease of Installation: Suitable for DIY projects.

Environmentally Friendly: Locally sourced and long-lasting.




10. Disadvantages of Cinder Block

Some of the disadvantages of the cinder block are:

Poor Insulation: Low thermal resistance, leading to energy inefficiency.

Heavy and Bulky: Difficult to handle and transport.

Limited Aesthetic Appeal: May not fit various architectural styles.

Prone to Cracking: Over time, cracks can develop.

Moisture Absorption: Can absorb moisture, causing mold and mildew.

Skilled Labor Required: Installation often demands skilled professionals.

Sound Transmission: Offers poor sound insulation.

Limited Load Capacity: May need additional reinforcement for heavy loads.

Efflorescence: Can develop unsightly white deposits on the surface.






11. Cinder Block Finishes and Designs

Here are some techniques to decorate and enhance your cinder block surface:



1. Painting:

Operate masonry paint with a roller or sprayer to effortlessly reach various colors.

Involve a sealer or primer ahead for more reasonable sticking and longevity.

Create a unique visual style by integrating stenciling or mural painting.



2. Stucco:

Traditional stucco combines cement, sand, and water for a greasy, textured finish.

Acrylic stucco is a modern alternative that is more flexible and easier to apply.



3. Veneers:

Thin stone or brick veneer panels can be applied to achieve a high-end look.

Decorative ceramic or mosaic tiles can add an artistic element.



4. Texture Coatings:

Lay textured layers or paints to acquire multifarious textures, ranging from smooth to rough.

Some coatings possess sand or small stones for added depth and texture.



5. Plantings and Greenery:

Incorporate vertical gardens or planters to achieve a natural and sustainable finish.



6. Tile or Stone Cladding:

Connect ceramic or natural stone tiles with mortar or sealant for a durable and visually appealing finish.



7. Wood Paneling or Siding:

Lay wooden panels or siding to reach a warm, rustic look that can sweeten insulation.



8. Polished Finish:

Polish the surface of the cinder blocks to perpetrate a smooth and glossy finish that induces remarkable results.






12. Cinder Blocks vs. Other Building Materials

CharacteristicCinder BlocksBricksConcrete BlocksPoured Concrete
Chief MaterialConcrete, cindersClayConcrete, aggregateConcrete
StrengthLowMediumHighHighest
DurabilityLowMediumHighHighest
WeightLightweightHeavyMediumHeavy
WorkabilityEasyDifficultDifficultVery difficult
CostLowMediumMediumHigh
VersatilityMediumHighHighHighest
Water resistancePoorGoodGoodExcellent
PaintabilityDifficultGoodDifficultDifficult
Finish optionsLimitedWideLimitedLimited



Read Also: Partition Wall




13. FAQ

1. How much does a cinder block weigh?

Cinder block weighs around 12 kg to 25 kg.



2. How much do cinder blocks Cost?

The average cinder block cost is $1 to $5 each.



3. How tall is a cinder block?

The cinder blocks are commonly 16 in (410 mm) tall.



4. How big is a cinder block?

Cinder blocks are 16 (410 mm) long and 8 (200 mm) wide. They are lightweight and offer strength, durability, fire resistance, excellent acoustic insulation qualities, energy-saving, and affordable price.






Read Also: Mortar



Verified By:  Er. Bipana Kshetri Puri
