Different works are carried out in the civil engineering sectors. All different works have different units; some works’ units may be the same. Some of the units in civil engineering are:
1. Units in Civil Engineering
|Sl. No.||Particulars of items||Units of measurement||Unit of payment|
|1||Earthwork: Excavation, filling, cutting, banking||m³||100 m³|
|3||Cutting of trees||Number||Per number|
|4||Stones: quarrying, blasting||m³||m³|
|5||Concrete: PCC, RCC, Precast||m³||m³|
|7||Damp proof course||m²||m²|
|8||Brickwork of any description||m³||m³|
|9||Thin partition wall||m²||m²|
|10||String course, drip course, watercourse coping, etc||m||m|
|11||Stonework of any description||m³||m³|
|12||Stonework in wall facing (thickness specified)||m²||m²|
|13||Woodwork: truss, rafter, beam, etc||m³||m³|
|14||Door, window shutters||m²||m²|
|15||Door, window fittings||Number||Per number|
|16||Timbering, boarding, sawing of timber, timbering of trenches, partition, etc||m²||m²|
|18||Expanded metal, fabric reinforcement, cutting angles, plates, tees||cm²||cm²|
|19||Threading; welding; solder of sheets||cm||Per cm|
|20||Iron gate, grill collapsible gate, rolling shutter||m²||m²|
|22||Roofing: tiled, corrugated iron, caves board (thickness specified)||m²||m²|
|24||Ridges; valleys; gutters (girth given)||m||m|
|25||Expansion and contraction joints||m||m|
|26||Ceiling timber, A.C. sheet, board, etc||m²||m²|
|27||Plastering; pointing; whitewashing; distempering; painting; varnishing; polishing; coal tarring; removing of paints||m²||m²|
|28||Flooring of any kind||m²||m²|
|29||Pipes, laying of pipes||m||m|
|30||Dismantling of brick masonry||m³||m³|
|32||Grouting of cracks, joints||m||m|
|33||Supply of sand; brick ballast; aggregates; timber||m³||m³|
|34||Supply of cement||Bag||Per bag|
|35||Supply of steel, G.I. sheet, bare electric line||Quintal||Per quintal|
|36||Supply of GI sheet||m²||m²|
|37||Supply of sanitary items||Number||Per number|
|38||Supply of paint, varnishes||Litre||Per litre|
|39||Supply of explosives, stiff paint||Kg||Per kg|
2. Basic Standards
The basic standards units are as follows:
1 inch = 25.4 millimeters = 2.54cm.
1 meter = 39.37 inches =1.09 yards.
1 liter = 0.22 galls (imp.)
1 gallon (imp.) = 4.546 liters.
1 gallon (US) = 3.785 liters.
1 Kilogram (kg) = 2.2046 pounds (lb).
3. Metric Unit of Weight/Mass
The metric unit of weight/mass is as follows:
1 tonne = 1000 kilograms = 1,000,000 grams.
1 quintal = 100 kilograms = 100,000 grams.
1 Slug = 14.606 kg
1 Slug = 32.2 lb
|Also Read: One-way slab and two-way slab|

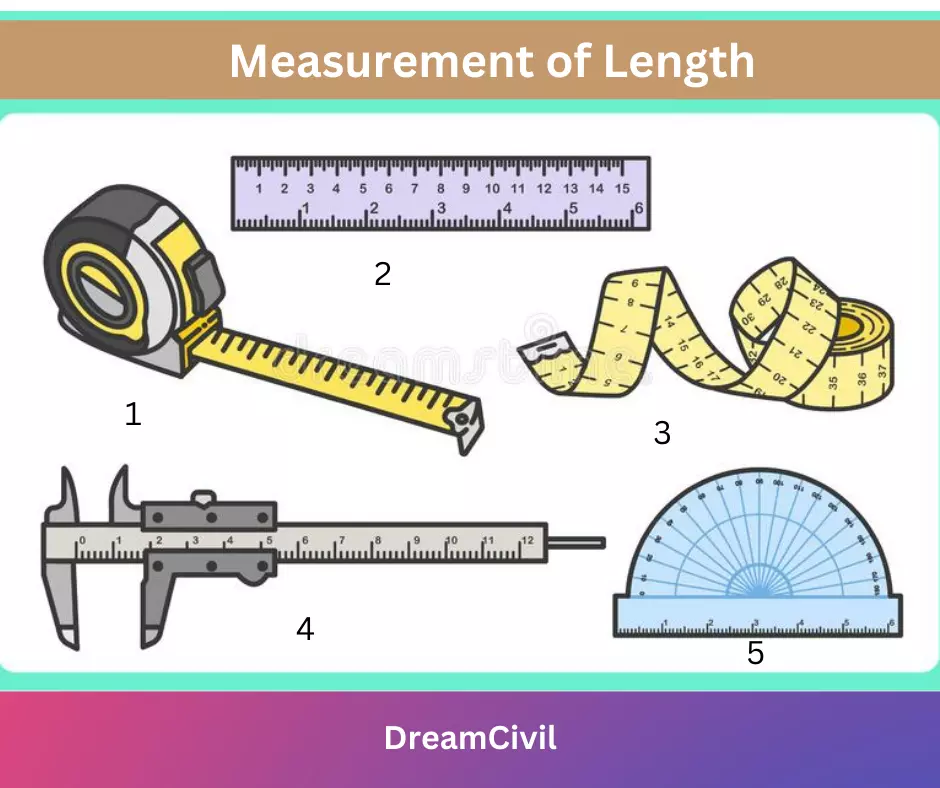

4. Measurement of Length
These are the majorly used units in civil engineering. The measurement of length is done in the following ways:
1 foot = 12 inches.
1 yard = 3 feet.
1 furlong = 220 yards.
1 mile = 8 fulongs.
1 Kilometer (Km) = 1000 meters.
1 meter (m) = 100 centimeters (cm).
1 cm = 10 millimeter (mm).
5. Metric Units For Liquid Measurements
The metric units for liquid measurements are as follows:
1 liter = 1000ml.
1 liter = 1kg.
1 kiloliter (1000 liters) = 1 cubic meter/ 1 cu.m/ 1 m³.
6. Conversion Factors
The conversion factors are as follows:
1 cu. ft. = 28.317 liters.
1 cu. ft. = 0.028 cu. meters.
1 cu. ft. = 6.24 galls (imperial).
1 cu. ft. = 7.48 galls (US).
1 imp. gall = 1.20 galls (US), liquid.
1 imp. gall = 1.03 galls (US), dry.
7. Measurement of Area
The measurement of the area is as follows:
1 Acre = 43560 sq. ft
1 Acre = 4046.46 sq. m
1 Acre = 8 Kanals.
1 Kanal = 20 Marlas.
1 Marla = 225 sq. ft (* in some regions 272 sq. ft)
1 Marla = 15.50 sq.m
Hope you got the idea of units in civil engineering.
