Foundation is the substructure that transfers the load from super-structure to the soil beneath. It is responsible for the stability of the whole structure. There are 2 types of foundation naming shallow foundation and deep foundation.



Shallow Foundation

Shallow Foundation is also called an open or wide foundation. Those, foundation which transfers the loads to subsoil at a point near to the ground floor of the building such as strips and rafts are called shallow foundations. For this type of foundation, the depth of foundation is less than or equal to the width of the foundation.

The features of a shallow foundation are as follows:

a. Depth is less or sometimes equal to its width.

b. It is placed immediately beneath the lowest part of the superstructures.

c. It is spread more horizontal than vertical.

d. It transfers the loads to subsoil at a shallow depth, close to the ground level.



Types of shallow foundation

There are 4 types of shallow foundation. They are:

1. Spread footing

2. Strip footing

3. Mat foundation

4. Grillage foundation



1. Spread Footing

This footing is also known as pad foundation. In this type of foundation, the base is made wider than the top to distribute the load from the superstructure over a large area. This type of foundation is suitable for walls and masonry columns. These foundations are constructed after opening the trenches to the required depth. It is economical for a maximum depth of 3 m.

While constructing this type of footing trenches are opened to the required depth and the soil is rammed well. Then a plain concrete of mix 1:4:8 is placed. Its thickness differs from 150 to 200 mm. The stone-masonry footing is constructed over this bed. It is constructed in courses and each course is projected 50 to 75 mm from the top course and the height of each course is 150 to 200 mm. In the case of wall footing, the projections are provided only in one direction while in the case of columns, they are provided in both directions. The projection of bed concrete from the lowest course of foundation masonry is usually 150 mm.

IMG 20200912 110555



Types of Spread Footing

There are 3 types of spread footing. They are:

a. Independent Footing / Isolated

b. Combined Footing

c. Continuous Footing

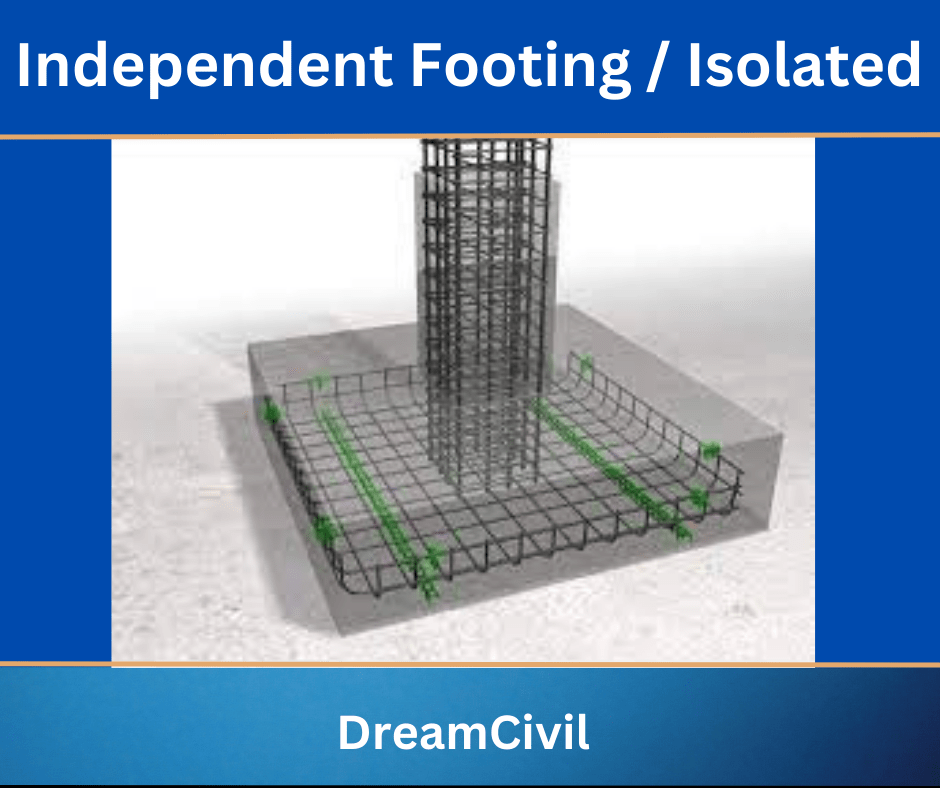

a. Isolated Column Footings / Isolated Footings

Separate footings are built for each column in isolated column footings. For distributing the load of the columns safely and uniformly over the soil, the size of the footing is kept according to the area required. Such type of footings is usually constructed over 100 or 150 mm concrete bed. Design engineers evaluate the required reinforcement and thickness of footing. Footing thickness may be uniform or sometimes varying.

IMG 20200912 110254

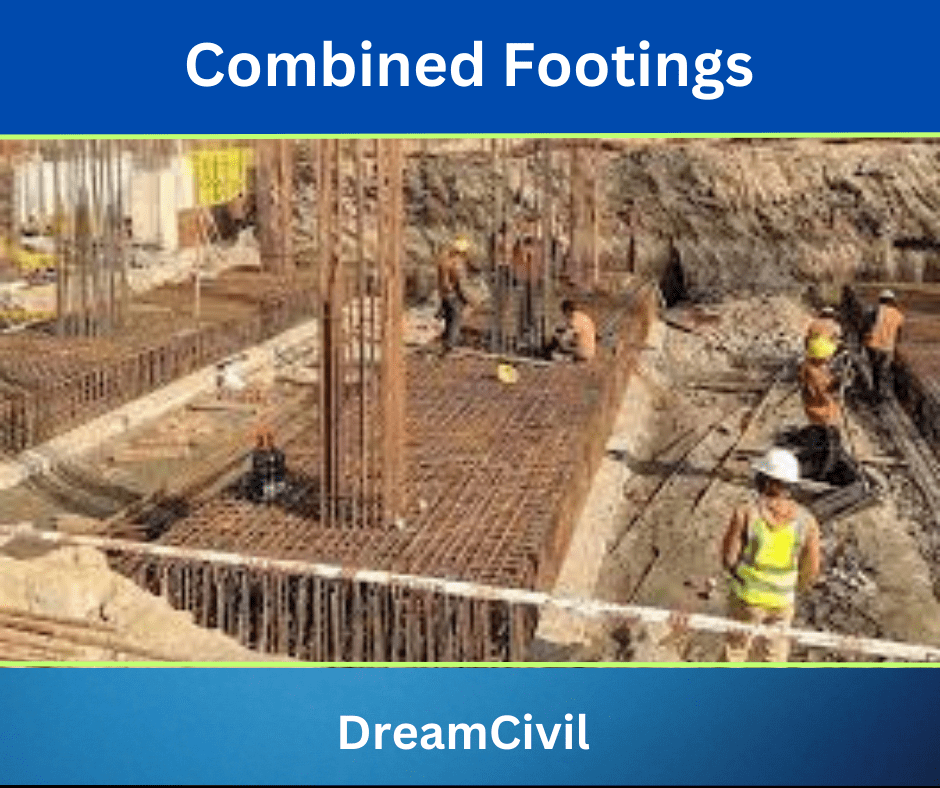

b. Combined Footings

In this type of footings, two or more columns are supported by a single base. This type of footing is required when a column is extremely close to the boundary of the property and hence it is worthless to provide footing much beyond the column face.

This footing may be rectangular or sometimes trapezoidal. The footing should be designed and constructed to transfer loads from both columns safely to the soil. A strap beam is provided for connecting two columns.

IMG 20200912 110324

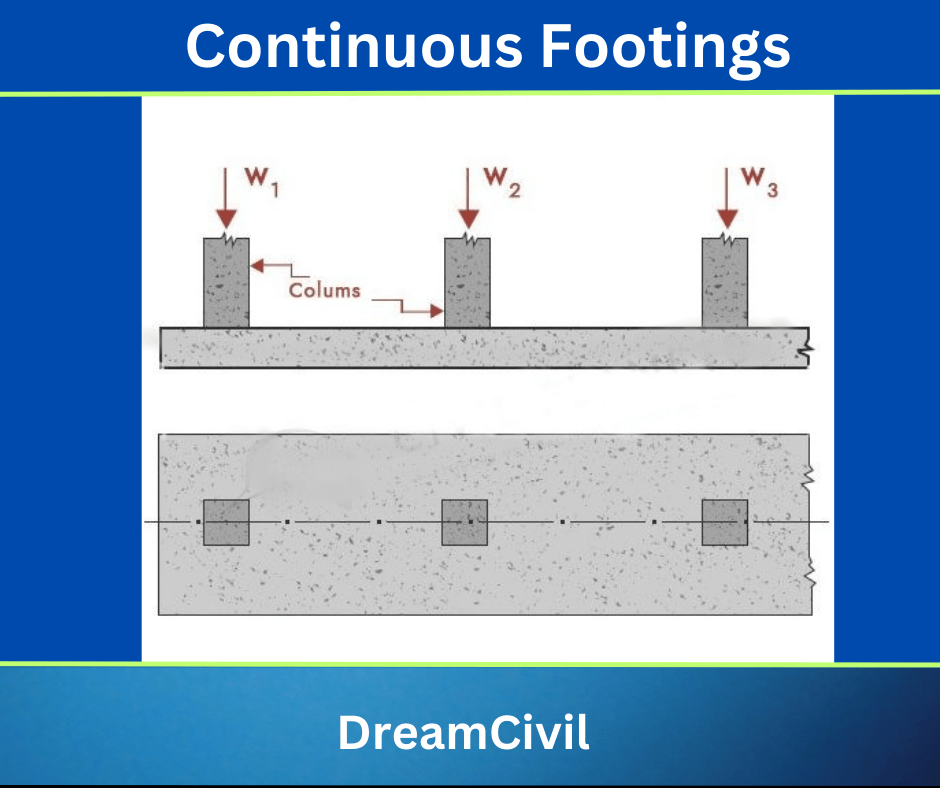

c. Continuous Footings

In continuous footings, a footing is common to more than two columns in a row. In case the columns in a row are nearer or if the SBC of soil is low, the continuous footing will be more applicable.

IMG 20200912 110353

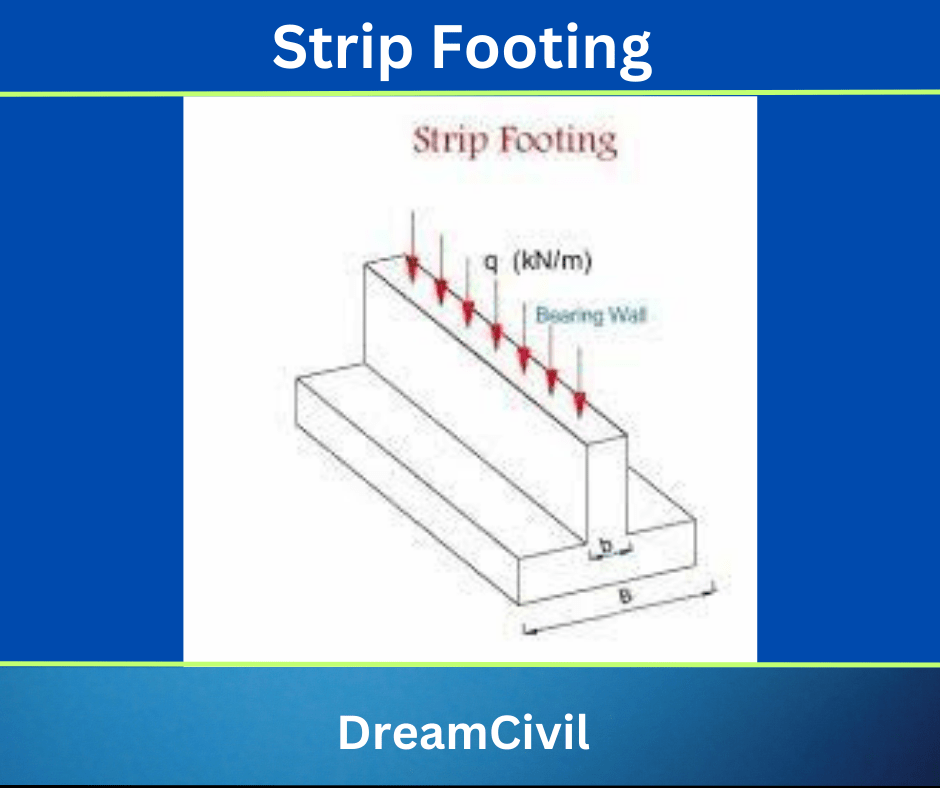

2. Strip Footing

Strip footing is the independent footing of two columns connected by a beam. It is of four types.

They are:

a. Wall footing

b. Inverted arch footing

c. Eccentrically loaded footing

d. Offset and strap (cantilever) footing

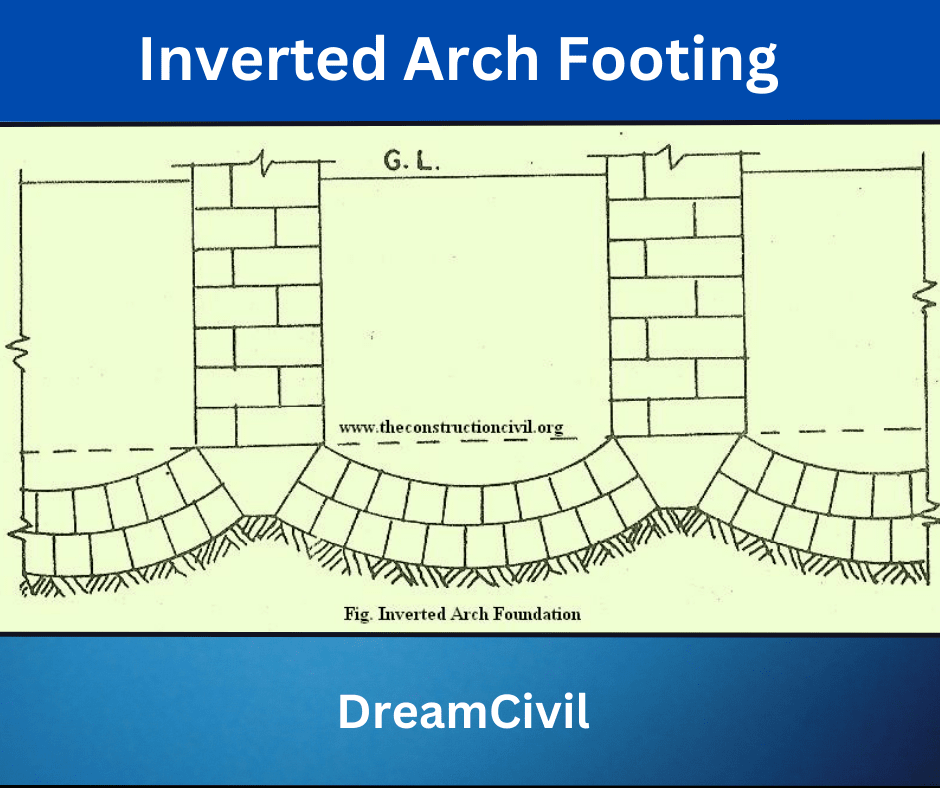

a. Inverted Arch Footing

This type of foundations are applicable for the areas where the SBC of the soil is incredibly poor and the load of the structure is through walls. Thus, inverted arches are built between the walls. End walls should be able to withstand the outward horizontal thrust due to arch action. So, it should be sufficiently thick and strong. The outer walls may be provided with buttress walls to strengthen them.

IMG 20200912 110440

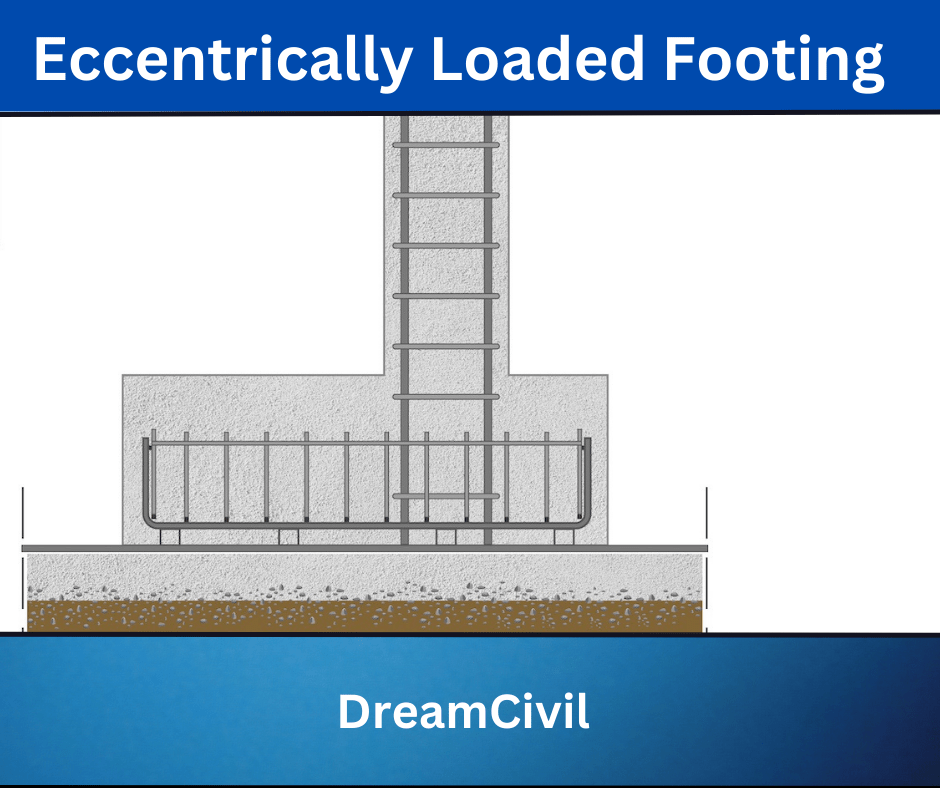

b. Eccentrically Loaded Footing

As far as practicable, the foundation should be so shaped and proportioned in such a way that centre of gravity of the imposed loads coincides with the C.G of the supporting area of the base. But the footing which is so shaped that the centre of gravity does not coincide with the C.G of the supporting area of the base is known as eccentrically loaded footing.

IMG 20200912 110459

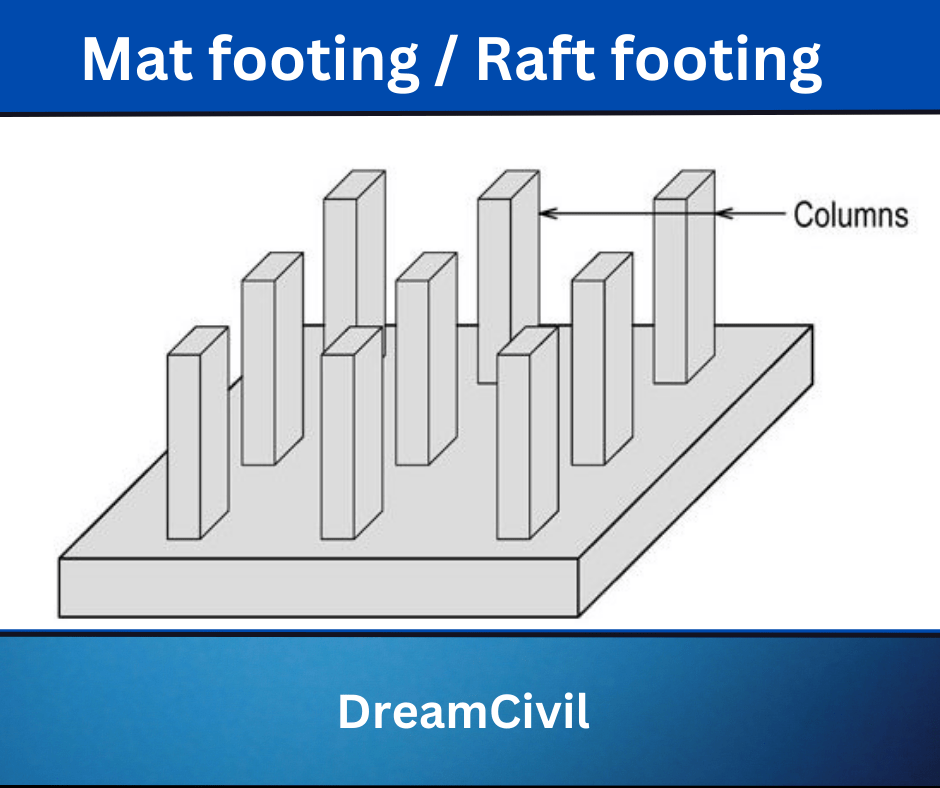

3. Mat footing / Raft footing

Whenever the load on the column is extensive (multi-storey column) or when the SBC of the soil is low, the foundations overlap each other. In such a situation, it is beneficial to provide common footing to several columns and this footing is called as mat footing. Load distribution is uniform in this footing.

It is also called as raft footings. The raft foundation in which the beams are built in both directions over the footing slab for connecting columns may be called as grid foundation. The settlement is uniform in this type of footing and hence unnecessary stresses are not developed.

IMG 20200912 110520

Types of mat footing:

a. Slab (solid)-up to 30 cm

b. Slab and beam-slab > 30 cm

c. Cellular-slab > 90 cm



4. Grillage Footing

Most of the high rise buildings are constructed with steel columns encased in concrete. Such type of columns carry a very heavy load and hence it requires special foundations for spreading the entire load to a larger area of soil. So Grillage foundation is one such special foundation which is used where the load of the structure is excessive and the bearing capacity of the soil is the poor and deep foundation is not possible.

It has one tier or more tiers of I-section steel beams. Top tiers consist of less number but large steel section while lower tier consists of a larger number but smaller size steel sections. Through the Baseplate, column load is transferred to the top tier. The unpainted grillage beams are enclosed in concrete beyond the edge of steel sections with a minimum cover of 100 mm. A minimum clear space of 75 mm is required to be kept between the flanges of adjacent grillage beams which ensure proper concreting. Pipe separators are used to maintain spacing.

IMG 20200912 110629



Based on the material of the foundation, the grillage foundation is of two types.

a. Timber grillage: It is mostly used for masonry wall foundation. It avoids differential settlement.

b. Steel grillage: It is used to carry heavy loads from steel columns and distribute into the soil having low bearing power.
