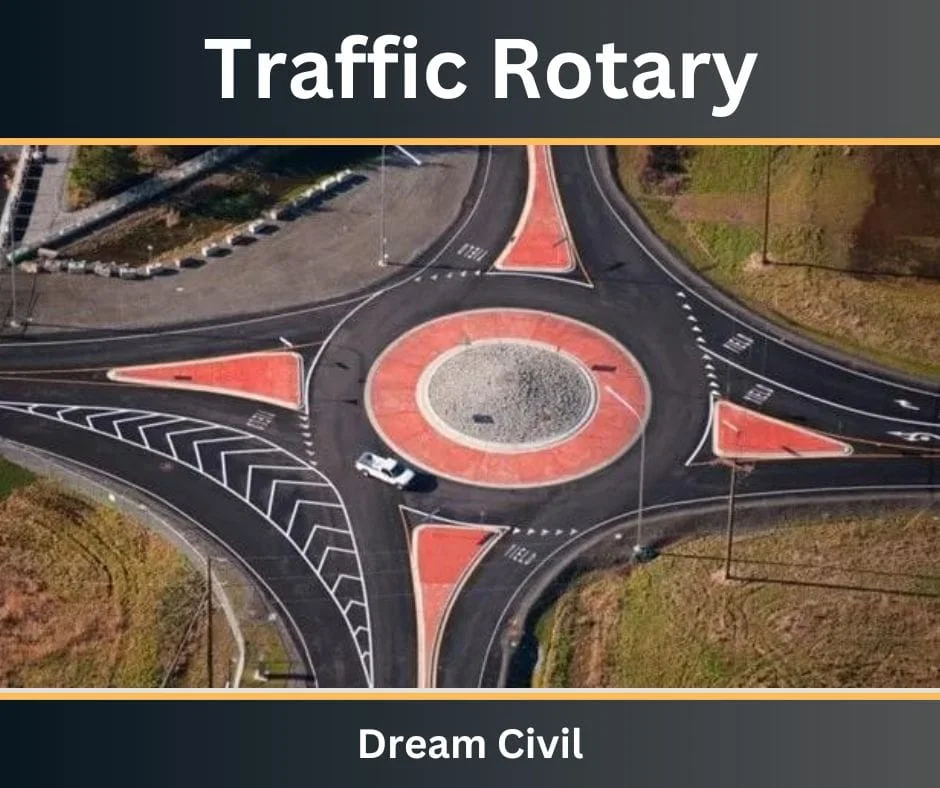

Traffic rotaries are junctions or roundabouts are unique types of at-grade intersections planned for the movement of traffic in one path across the central island of a traffic rotary.

Effectively, all significant disputes at the intersection, clash of right-turn motions, are curved into milder conflicts, i.e. mixing and diverging.

Where all converging vehicles are pushed to move almost a large central island (Rotary Island) in one path (clockwise direction) before they can weave out of traffic flow into their wished direction.










  1. Design of Traffic Rotary

The design elements contain design speed, entrance, exit, and central island radius, weaving length, and distance, and entry and exit widths.

In addition, the rotary potential can be calculated employing a particular empiric formula.

a. Rotary Design Speed.

b. Entry, Exit, and Island Radius of Traffic Rotary.

c. Width of the Traffic Rotary.

d. Limit of Traffic Rotary.



a. Rotary Design Speed

The two vehicles are depended upon to lower speed at a rotational position. The construction speed of the traffic rotary would be largely less than the roads guiding to it.

While it is feasible to construct a roundabout without a speed decrease, the geometry will direct to extremely high construction costs. The average method is to hold the design speed at 30 and 40 km/h desired in urban and rural areas.



Rotary Design Speed





b. Entry, Exit, and Island Radius of Traffic Rotary

The radius at the input relies on various components, like design speed, super-elevation, and friction coefficient. The entry to the rotary mechanism is not smooth, but a minor curvature is involved. This is going to make the driver decrease the limit.

The entry radius of about 20 and 25 meters is appropriate for urban and rural architecture. The space of the exit ought to be better superior to the sweep of the passageway and scope of the revolving island with the destination so the vehicles are dismissed at a more increased speed from the rotational.

The normal approach is to maintain the result range someplace in the capacity of 1.5 and multiple times the span. However, if the development of the person on foot at the left strategy is noteworthy, the left span could be levied equal to that of the entrance radius.

The radius of the central island is governed by the geometry speed as well as the radius of the entrance curve. In fact, the radius of the central island is delivered marginally more increased radius so as to offer choice to the flow of traffic already in the rotation zone.

The radius of the island, which would be almost 1.3 percent of that of the passageway bend, is excellent for all concentrated goals.



Entry, Exit, and Island Radius of Traffic Rotary





c. Width of the Traffic Rotary

The width of a passageway and the width of the exit will be dictated by the traffic joining and exiting the convergence and the width of the moving path.

The width of the carriageway at the passageway and exit guide would be fairer than the width of the carriageway process concentrates to determine the speed.

IRC recommends that a 7m profound two-path street ought to be maintained up at 7 m for metropolitan streets and at 6.5 m for rustic streets.

By analogizing, both metropolitan & provincial interstates, a three-path way of 10.5 m is reduced to 7 m and 7.5 m each.

The dimension of the weaving part should be more outstanding than the dimension of the section and also the exit. Usually, this will be one way more than the normal section and remain the width of traffic rotating.

The same manner weaving width of traffic rotating is given as,

Weaving Length = ( (e1 + e2) )/2+ 3.5m

Here,

e1 = width of the carriageway at the section

e2 = width of the carriageway at the departure of traffic rotational

Weaving length determines how readily the traffic blend and wanders. It is to be selected dependent on considerable parts.



Width of the Traffic Rotary



For example, weaving width, the size of weaving traffic to the non-weaving traffic, and so on. This can be best achieved by preparing the proportion of weaving length to the weaving width, quite high.

A proportion of 4 is base worth suggested by IRC. Incredibly huge weaving length is potentially dangerous, as it might empower over-speeding.



d. Limit of Traffic Rotary

The limit of traffic rotational is regulated by the limitation of each weaving zone. The transportation street research lab (TRL) offered a coincidental observational equation by uncovering the limit of the weaving zone.

Qw = (280w[1 + e/w ][1 – p/3 ] )/(1 + w/l )

where

e = normal section and leave width, as (e1 + e2) /2

w = weaving width

l =  length of weaving

p = degree of weaving traffic to the non-weaving traffic.

p = (b + c )/(a + b + c + d)



This limit recipe is substantial just if attending requirements are fulfilled:

a. Weaving width at the rotational is 6 and 18 meters.

b. Extent of the ordinary width of the carriageway for area and exit to the weaving width is an extent of 0.4 to 1.

c. Extent of the weaving width to the weaving length of the roundabout is 0.12 and 0.4.

d. Capacity of weaving traffic to non-weaving traffic in the rotating is in the scope of 0.4 and 1.

e. The weaving length obtainable at the combination is 18 and 90 m.

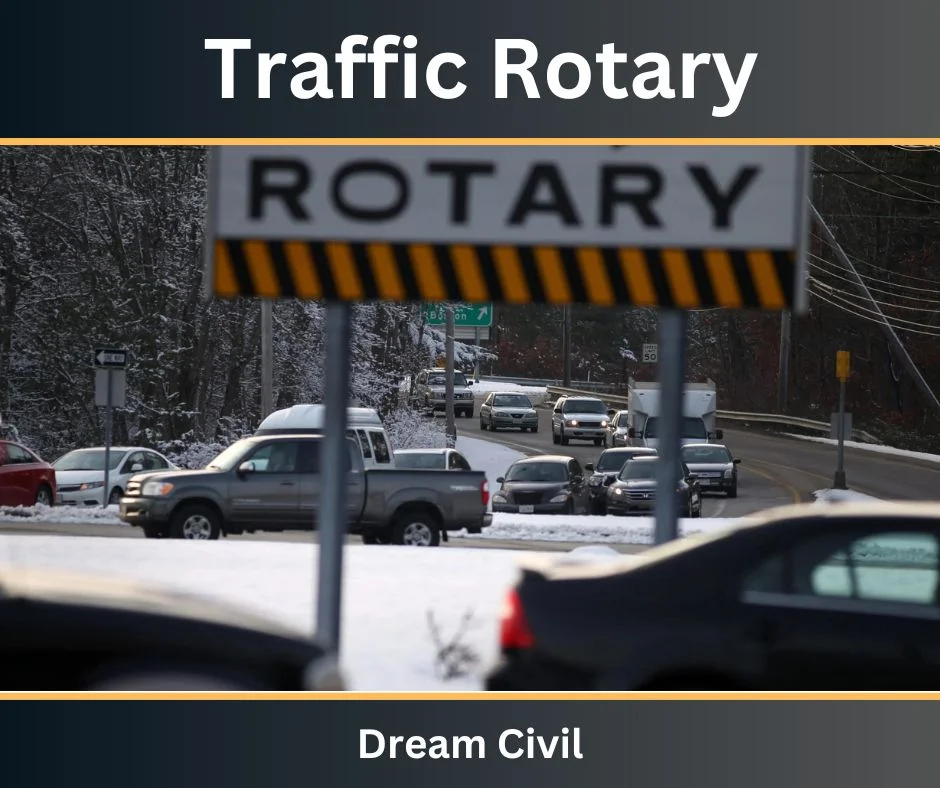

Limit of Traffic Rotary










  2. Advantages of Traffic Rotary

The advantages of traffic rotary are as follows:

a. Orderly and disciplined traffic flow is supplied by the one-way movement.

b. Regular stopping and starting of vehicles are bypassed.

b. Direct conflict is stopped.

c. All turns can be completed with comfort.

d. A rotary is particularly done for intersection legs going from 4 to 7.

e. For average traffic, rotaries are self-governing and require no control by police or traffic signals.

f. The ability of rotary intersection is the highest of all other junctions at grade.










  3. Disadvantages of Traffic Rotary

The disadvantages of traffic rotary are mentioned below:

a. Rotary needs comparatively big land. So where space is restricted and expensive, the whole cost may be high.

b. Where pedestrian traffic is big, the rotary by itself cannot handle the traffic and requires control by traffic police. If the vehicular traffic has to control to permit the pedestrian to cross, the main goal of the rotary has failed.

c. At places of mixed traffic, the design of the rotary becomes too busy and the operation and management of traffic become difficult.










  4. Rules for the Selection of Traffic Rotary

The rules for the selection of traffic rotary are as follows:

a. Rotaries that are useful when the traffic joining from all 4 methodologies are relatively equal.

b. An all-out volume of about 3000 vehicles each hour can be regarded as an upper restricting case as well as a volume of 500 vehicles each hour is feasible.

c. A revolving gainful when the extent of the right-turn traffic is too high; normally in the event that it is in extra of 30%.

d. Rotaries are reasonable if there are considerable methodologies and if there are no various paths obtainable to right-turn traffic. Rotaries are clearly fit if the convergence math is complicated.



Selection of Traffic Rotary










  5. Traffic Operations in a Traffic Rotary



a. Veering

Veering is a traffic movement when the vehicles driving one way are isolated into different streams as shown by their objections.



b. Blending

Merging is disobedient to wandering. Consolidating is indicated as the path toward entering the traffic coming from different methodologies and going to a specific purpose into a solitary stream.



c. Weaving

Weaving is the consolidated development of both combining and wandering developments in a similar way.

Traffic rotaries reduce the complexity of intersection traffic by pushing them into weaving tasks. The shape and size of the rotating are controlled by the traffic volume and bit of turning advancements.

Limit appraisal of a rotational is completed by examining the element containing the best size of weaving traffic. The research is completed by employing the equation provided by TRL.








  6. References

1. Content Filter & Authenticity Checking Team, Dream Civil International

(Our team checks every content & detail to maintain quality.)
