Soil Subsidence may be defined as the under movement of the ground beneath a structure due to the escape of moisture content.

This guides to the sinking of the foundation, which compromises the stability of the building.

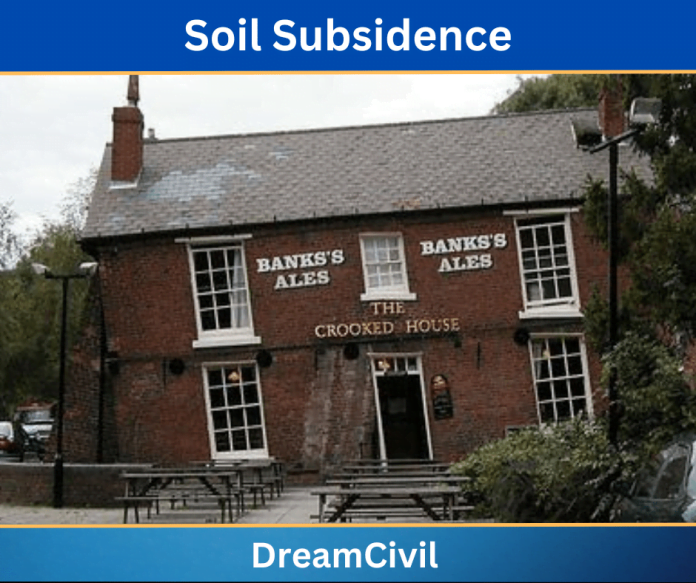

  1. Soil Subsidence

When the water content is removed from the soil, shrinkage happens in the soil, and the corresponding region of the foundation shifts downward. Subsidence usually happens in clay soil, resulting from soil desiccation induced by trees or other vegetation.

Identifying the signs of subsidence in a building is important for early diagnosis of the issue and evaluating appropriate steps to remedy the problem.

Typical denotations of subsidence concern the development of cracks in dry months that grow to close in wetter months, a decrease in the wetness of the upper soil layer under the foundation, cracks in slabs without intersections, outer movement of exterior walls at the top, etc.










  1. Causes of Soil Subsidence

The causes of soil subsidence are as follows:



a. Natural Causes of Subsidence



Cohesive soils shrinking and swelling.

Cohesive soils such as clay and silt are extremely feasible to generate subsidence since they shrink and swell relying on their moisture content. This signifies that the climate can have a huge impact on their composition.



Non-cohesive soils are being washed away

Non-cohesive soils, like sand and gravel, are slightly liable to shrinkage and growth, but they are more liable to being flushed out by water flow (such as when a water pipe is damaged).

Movement of varying soil structures

If there are various soil structures beneath a building’s foundations, then their movement can lead to subsidence.

Soil decomposition

Some natural soils, such as peat, can disintegrate and generate ground movement.

Trees and other vegetation

As much as that nearby tree or bush adds to the charm of where you live or work, there is the chance that it could be pushing subsidence to happen. Vegetation around the foundations can be a cause because roots suck moisture from the soil, pushing it to contract.

This is a better risk during extended periods of dry weather as thirsty plants make their roots by building foundations in the hunt for water. Oak, willow, and poplar trees all absorb a lot of dampness from the soil.



Natural Causes of Subsidence



b. Man-Made Causes of Subsidence



Damaged drains

Water exiting from damaged drains can occasionally soften, or even clean away the ground below the foundations, leading to ground movement and, therefore, building movement. This problem concerns sandy or gravelly soil.



Historic Mine Shafts

Mines are also the reason for soil subsidence

Regions, where there was serious coal mining, will have many open areas beneath the ground, which can lead to subsidence.

Nearby traffic

If a structure is close to a region of heavy traffic, the leading extended vibration can induce soil to move.

Improper Ground Preparation

If a building or structure has been built on compressible clay soil and no ground preparation has been carried out, this will often lead to subsidence.

Construction Work

Vibrations & moving of soil at nearby excavations can have negative effects.

Bad foundations

Incomplete/poor-quality foundation works can cause subsidence problems later down the line, especially if they have incurred water damage.



Man-Made Causes of Subsidence










  2. Signs of Subsidence

The signs of subsidence are as follows:

a. Cracks in the superstructure manage to spread wider in the dry season and manage to shut in the wet months.

b. Cracks can be located on the interior and exterior of brick walls and extended diagonally across the wall. They are broader at the top compared to their width at the base.

c. The width of cracks is greater than 3 mm.

d. The cracks are observable close to the windows and doors.

e. The moisture content of the upper soil layer below the foundation has reduced recently.

f. There are no intersections of cracks in concrete slabs, i.e., cracks are single lines.

g. External walls overlook to move outer at the top.

h. A concrete driveway is in an inadequate situation or broken up.

i. Time difference elevations reveal the level distortion of the foundation to rise with time and seasonally, particularly in dry months.

j. The foundation has increased around the perimeter many years before, and it contains a bowl shape with a low point close to its center.

k. There is no interval between the exterior foundation grade beam and the adjacent soil at grade, mainly during the dry period.

l. The plasticity index of soil is more remarkable than 25. The readings of the pocket penetrometer of the soil near the grade are high, of the order of 4 TSF.

m. The soil beneath the grade beam is challenging to research, more than 2.5 cm to 5 cm, and is dry when burrowed.

n. Large tree roots are observable at grade, advancing toward the structure.



Signs of Subsidence










  3. Solution of Soil Subsidence



a. Develop a Strategy

The first action taken for foundation repair is to conceive a strategy. Suppose a foundation repair service provider checks your building. In that case, they can think of a specific plan for where your house requires additional assistance to place it up and return to its original position.

The repair idea could specify the areas where all the support would be kept as well as the number of support spots needed. The supports were most usually found along the part of the house’s perimeter.



How to Repair Foundations?








Read More: Purposes of Building Foundation










b. Provide Installation Support

There are two types of support systems that are as follows:

a. Underpinning

b. Piling

A solid foundation is laid beneath ground level to support or strengthen a building known as “underpinning” in terms of engineering.

Piling is the process done to protect the existing foundation from failure by supporting and adding strength to the existing foundation with the help of a pile foundation.

To utilize pilings, known as pressed piles, pressure is utilized to take pre-formed concrete parts into the ground.



How to Repair Foundations?



c. Raising Building

By raising the submerged parts of the house and confirming that its foundation had been placed to its average elevation after trying to place the supports underground.

The house is raised utilizing the pressed pile process by the pressure of the pile inside the underground forcing upon it.

The house would be raised utilizing jacks, placed in by a spring-like pressure, or shimmed to secure correct elevation. A support pier holds the foundation for raising the house by utilizing the bell-bottom pier technique.

Also, on the highest part of the pier, hydraulic jacks are adjusted, and now the house is raised into place by utilizing jacks. After that, shims will be punched in there to hold the home’s elevated view.



How to Repair Foundations?



d. Slab jacking Technique

A slab jacking method contains pumping grout below pavement or beam to make a lifting pressure that raises it back to its original height. Trying to pump a cement mortar into tiny, tactically kept holes in a concrete slab is the process of slab jacking.

Once placed, a cement mortar reinforces it into a dense concrete structure, giving a reliable impact on the concrete slab.

The replacement level of sludge may hold the favorable effects of lime stabilization to its base as well as sub-base unless a sediment mortar is utilized. This involvement is also useful to restore the slab to its suitable grade, and it also settles down the sub-soil, stopping the problem from recurring.



Slab jacking Technique










  4. How Much Does It Cost To Repair Foundations?

The normal foundation repair cost for homeowners is commonly just over $4000, or around $1800 and $6500. Little patching of tiny cracks is usually as low as $500, whereas main structural repairs or underpinnings can cost more than $10,000.



This was for the soil subsidence.










  5. References

1. Content Filter & Authenticity Checking Team, Dream Civil International

(Our team checks every content & detail to maintain quality. )
