What is Hip Roof ?

Hip Roof | 6 Types of Hip Roof | Construction of Hip Roof | History of Hip Roof | Life Span of Hip Roof | Advantages & Disadvantages

5
(769)



The roof is an important component of any building structure that essentially forms the topmost covering of the structure. The roof is the structural component that protects the entire structure from the various elements of weather such as rain, frost, hail etc. Due to the inevitable nature of roof in building construction, various types of roof have been developed and are used all over the world. One such important type of roof is the Hip roof.

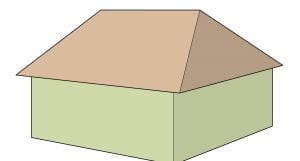

A hip roof is also commonly referred to as the hipped roof. It is the roof in which all the sides slope downwards to the walls, mostly with a mild gentle slope. This roofing does not have any gables or vertical sides.  The buildings that are provided with this roofing have two triangular sides and two trapezoidal sides. Sides of a hip roof commonly has almost the same slope or the pitch. Due to this, roofing is mostly symmetrical about the centre lines.

The hip roof mostly consists of a consistent level fascia which means that the gutter can be installed and fitted all around the hip roof. This roofing is extensively used in different styles of architecture as well as in a wide range of structures. In modern times, this roofing is commonly used in the bungalow style houses and cottages.



Overview

It can be understood as the roof that slopes upward from all the sides of the structure and thus does not have any vertical ends. The external angle at which the adjacent sloping sides of the roof meet is referred to as the hip. The degree of such angle formed respectively is referred to as the hip bevel.

A squared hip roof usually is found in the shape of a pyramid. It is also known as the pavilion roof.

In the rectangular type of the hip roofing, the ridge of the roof meets the two hips at either end of the structure.

Another common type of the hip roof is the half-hipped roof which is referred to as the Jerkin head roof. In this roofing, the gable ends of the roof are truncated by the eaves of a small hip end also known as the jerkin head which fairly descends a short distance from the ridge of the roof.

In case of the structures that are irregular in shape, the roofing system may need more than four hips which may alternate with the valleys to form the hip and valley roof.



History of Hip Roof

The history of the hip roof dates back to the 18th century. The earliest known example of this roofing is the French Quarter of the New Orleans. It was extensively used for the roofing of the American houses back in the 1950s. Ever since then, It has been popular in American architecture due to the aesthetic appearance as well as the durability offered by this roofing.

Even today, the cottages and bungalows are provided with the hip roofing in the U.S. This roofing has been an integral part of the modern domestic architecture particularly in the French and American houses. This roofing is thus an essential aspect of both the traditional American Foursquare style as well as the French style constructions.



Life Span of Hip Roof

According to the statistical reports, it has been found that the hip roof can last as long as fifty years if it is constructed with proper techniques and utmost care. Mostly, the life span of this roofing is dependent on the construction materials used as well as the quality of the maintenance provided. When the hip roof is constructed using stable materials such as the steel shingles they can last for long periods.



Estimated Cost of Hip Roof

Usually, the total cost of construction of this roofing depends on several factors such as the cost of construction materials, labour costs, framing costs etc. In general, the labour costs for the construction of an average-sized hip roof that measures approximately 1500 square feet in the surface area amounts to around $12000 to $18000.

The cost of the additional framing materials can be approximately equal to about $2 to $5 per square foot. Thus, for a 1500 square foot, the additional framing material would approximately cost $1000 to $3000. It has been found that the cost of installation of a new hip roof is cheaper than replacing the existing roof.



Types of Hip Roof



1. Simple Hip Roof

It is most commonly used all over the world. The design of this roofing usually comprises of the triangle on two sides and the polygon on the other two sides. All these four sides are thus joined together at the top of the roof resulting in the formation of a ridge.



2. Half Hip Roof

It consists of two sides that are shortened such that they lead to the formation of the eaves.



3. Dutch Gable Hip Roof

It has intermediate features of the hip roof and the gable roof. The most important advantage offered by this roofing is that it provides more interior space due to the presence of the gable at the end of the ridge of the hip roof.



4. Cross Hip Roof

It is roofing in which the two sections of the roof join together at their ends thereby forming the seam or the valley.



5. Pyramid Hip Roof

It is the roofing in which four triangular sides of equal length meet together at the top at a single point to form a pyramid.

370f8ea66c5055797d83b47bce68a096 min



6. Tented Hip Roof

It is polygonal in nature and consist of steeply pitched slopes that rise to form the peak of the roof.



Construction of Hip Roof

The construction of this roofing requires utmost accuracy as well as precision. It is a well-known fact that the construction of this roofing is more difficult than the construction of a gable roof. This is because it requires more complex systems of trusses or the rafters.

This roof can be constructed on several shapes as per the requirement of the user. In this roofing, each of the ridges lies centrally over the rectangle of the building structure above which the roof is placed. The hips as well as the hip rafters are usually laid on the external corners of the buildings and are raised to the ridge. In case of the presence of an internal corner of the building, a valley is used to make the join between the sloping surfaces. The pitch or the slope of the hip roof can be varied according to the requirement.

What is Hip Roof ?

The general steps involved in the construction can be listed as follows:

1. The first step of the construction includes taking and recording all the measurements before the rafters are cut.

2. The rafters are fixed to the ridge board. The ridge board refers to the frame that will be secured all around the roof.

3. Then, the required dimensions of the hip rafter are duly computed and the rafters are affixed one by one.

4. After the completion of nailing the rafters in place, they can be trimmed as per the requirement to obtain a cleaner and finer layout.

5. The hip rafters are connected to the standard rafters.

6. Finally, the jack rafters are installed between the standard rafters and the hip rafters.

7. The hip roof constructed is covered with metals, shingles, tiles or slates.



Advantages of Hip Roof

1. Aesthetically Appealing Nature:
It is rich in aesthetic appearance due to which it is used extensively for the roofing of the architectural buildings and structures. It is visually persuading in nature and thus increases the overall architecture as well as the property value.

2. Aerodynamic Features:
It is characterized by a significant aerodynamic feature. Since it does not have any flat-sided ends; it does not catch the wind. It is self-bracing and is highly desirable even in the areas subjected to strong winds and even hurricane-prone areas.

3. Energy Efficient Nature:
It has proven to be energy efficient. It possesses the ability to keep the buildings cool, particularly in summer by shielding all sides of the house. It is suitable even for the warm climates and also minimizes the unnecessary use of fans, coolers etc.

4. Efficient Drainage Provisions:
The hip slopes consist of downward sloping sides that enable efficient drainage even during heavy rainfall and snowfall. The sloping sides permit the easy flow of the collected water from the roofs.

5. Additional Space Provisions:
The hip roof provided with an additional dormer or the rooftop window can be used to maximize the interior living space.



Disadvantages of Hip Roof

1. Relatively Expensive:
It is comparatively expensive than the traditional gable roofs. This is because the design of the hip roof is more complex and also the framing requires additional construction materials. This also significantly increases the cost of labour.

2. Prone to Damage due to Leaks:
Even though the sloping sides of the hip roof provide efficient drainage. It is susceptible to the damage by leakage of water. The inclusion of the valleys and the hips in such roof are a kind of a gateway for the passage of water. Hence, suitable preventive measures and maintenance are required for the prevention of such damage.

3. Difficult Access:
The design of this roof leads to difficulty in access to repair and maintenance.  Due to this, the cost of replacing an existing roof with a hip roof is quite high.
