Mudjacking may be defined as a concrete leveling method that applies to pump a material beneath a sunken concrete surface to raise it to the planned elevation.
The depressed concrete surface, like slabs, pavement, or driveway, is pushed up by pumping mud or soil to deliver essential assets and elevation.
1. Features of the Mudjacking
Mudjacking also known as slab jacking or concrete lifting is a useful strategy to set a depressed concrete slab without moving for the entire replacement.

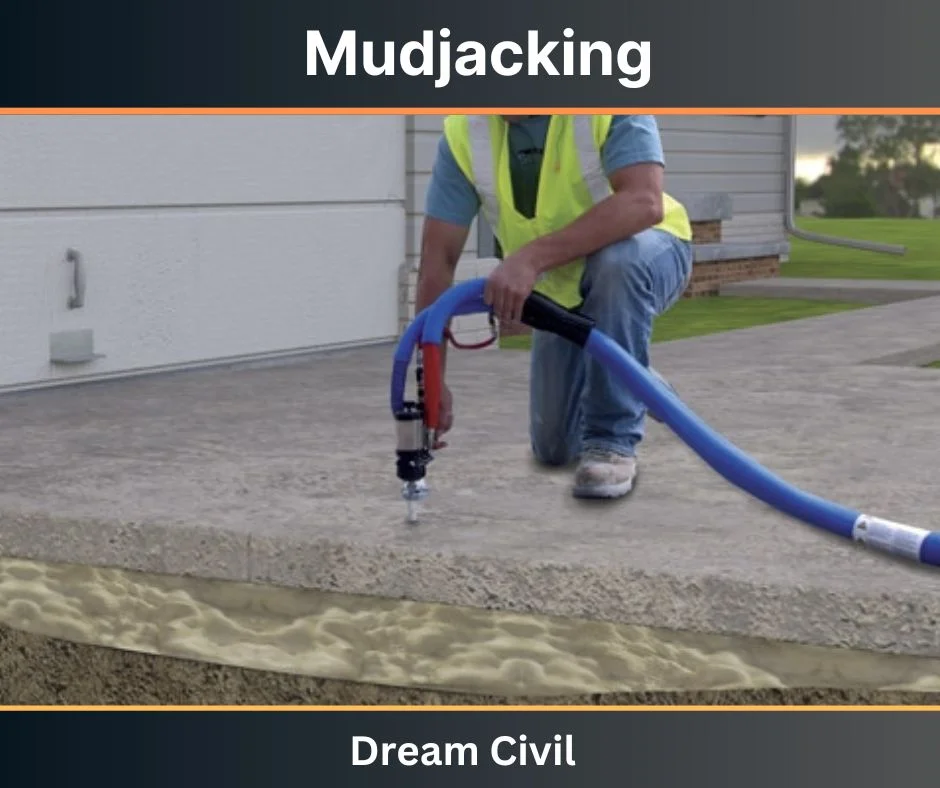

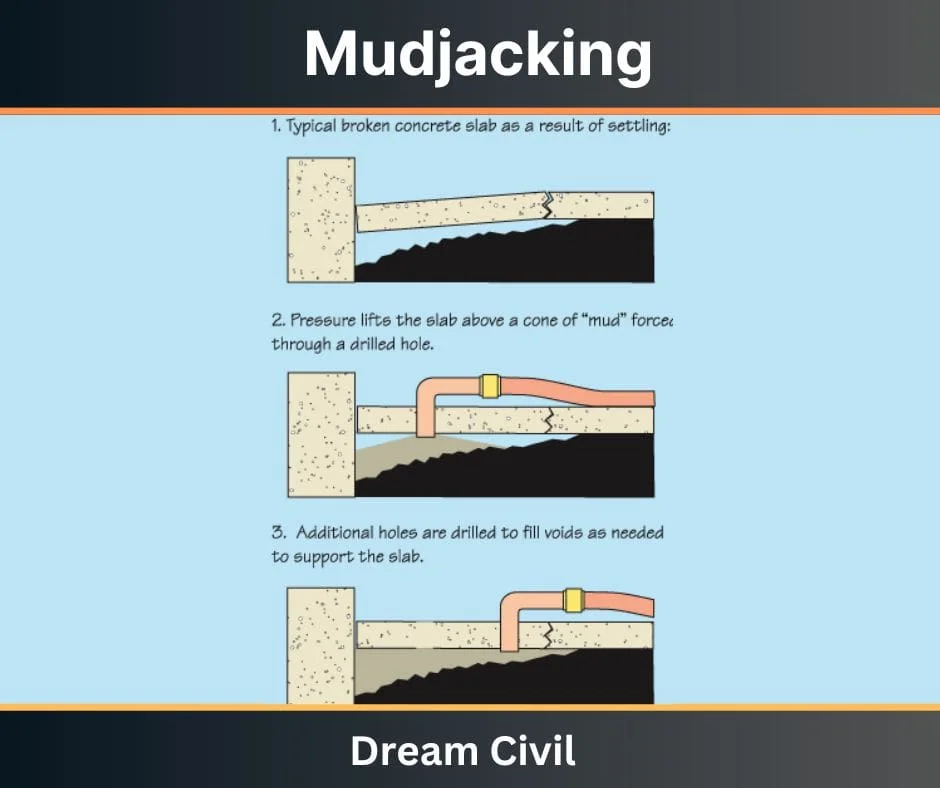

a. During mud jacking, mud is pumped under a sunken concrete surface to raise it. The mud is forced through holes created near the concrete surface employing a hydraulic pump. The holes are prepared at a diameter varying from 1.5’’ to 2.5’’.
b. The mud employed for the procedure is a slurry mix made of Portland cement, topsoil, and water.
c. The combination is pumped via a hose into the holes dug near the depressed concrete surface.
d. The pumped slurry advances the surface and seals the voids and empty spaces beneath the structure, which then hardens to deliver solid backing.
e. Mudjacking is a quick elevation fix to the concrete surface that has experienced settlement. It neither fixes the structural problems of the surface nor enhances the durability of the concrete surface.
f. Mudjacking is an applicable solution for the following techniques:
i. The concrete surface is just depressed and still structurally good; that just must be elevated to the planned position.
ii. The user does not need a complete replacement of the concrete surface due to lack of budget or time but must have a more suitable surface until it is time for complete replacement.
2. Advantages of Mudjacking
The advantages of mud jacking are as follows:
a. Mudjacking is cheap to work out compared to substituting the entire concrete surface.
b. The procedure is environmentally friendly as the mud employed is a slurry mix of water, soil, and cement.
c. Mudjacking is a really fast method that is achieved within a few hours.
d. The method does not require any heavy equipment or a big number of people.
3. Disadvantages of Mudjacking
The disadvantages of Mudjacking are as follows:
a. Mudjacking does not remove cracks available on the concrete surface. It can only carry the cracks together and terminate tripping hazards.
b. A concrete surface surrounded with tile or any cosmetic top treatment has a chance of harm during the mud jacking method.
Mudjacking is satisfactorily involved fixing cracked sidewalks, uneven patios, sunken porches, sagging parking lots, etc. It is not a rehabilitation solution for structurally harmed or crumbled concrete surfaces nor for any structural foundation issues.

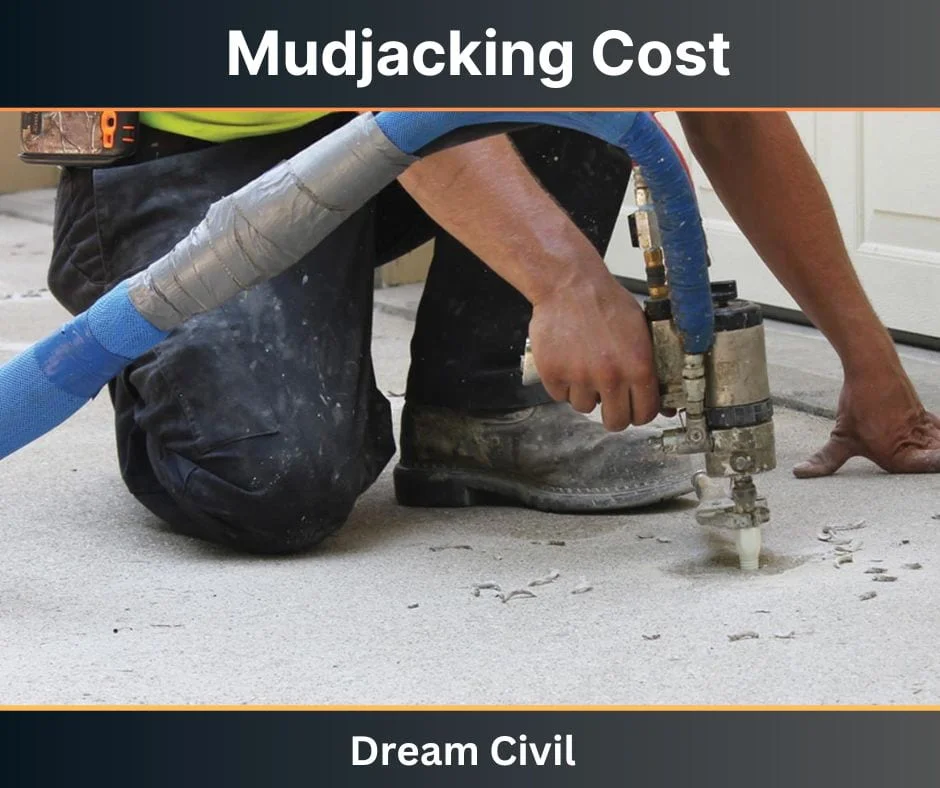

4. Mudjacking Cost
The average cost of mud jacking a sunken slab varies from $3 to $6 per square foot, based on the dimension and sinkage of the concrete. The average cost to flow a new concrete slab varies from $4 to $8 per square foot.
But, that doesn’t contain materials, splitting apart your old slab, and hauling away any debris.
5. FAQ
a. How long does Mudjacking last?
Mudjacking lasts about 2 to 5 years. Once the mud-jacking slurry is pumped underneath your concrete, must wait 24 to 72 hours before you can employ your slab.
b. Is mud jacking worth it?
It is less expensive and more comfortable to control. At the same time, mud jacking uses heavier materials and needs more cleanup. There are more additional holes that are large sufficiently for weeds to expand through them. Still, we can say mud jacking is worth good.
c. How much does mud jacking Cost?
The average cost of mud jacking a sunken slab varies from $3 to $6 per square foot, based on the dimension and sinkage of the concrete. The average cost to flow a new concrete slab varies from $4 to $8 per square foot.
But, that doesn’t contain materials, splitting apart your old slab, and hauling away any debris.
